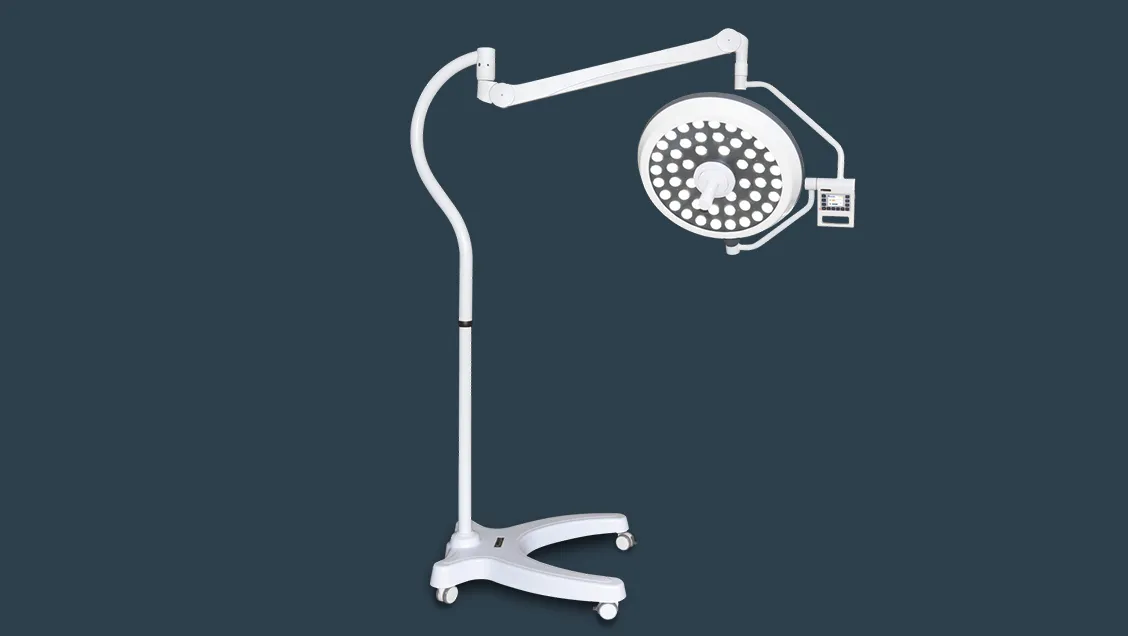

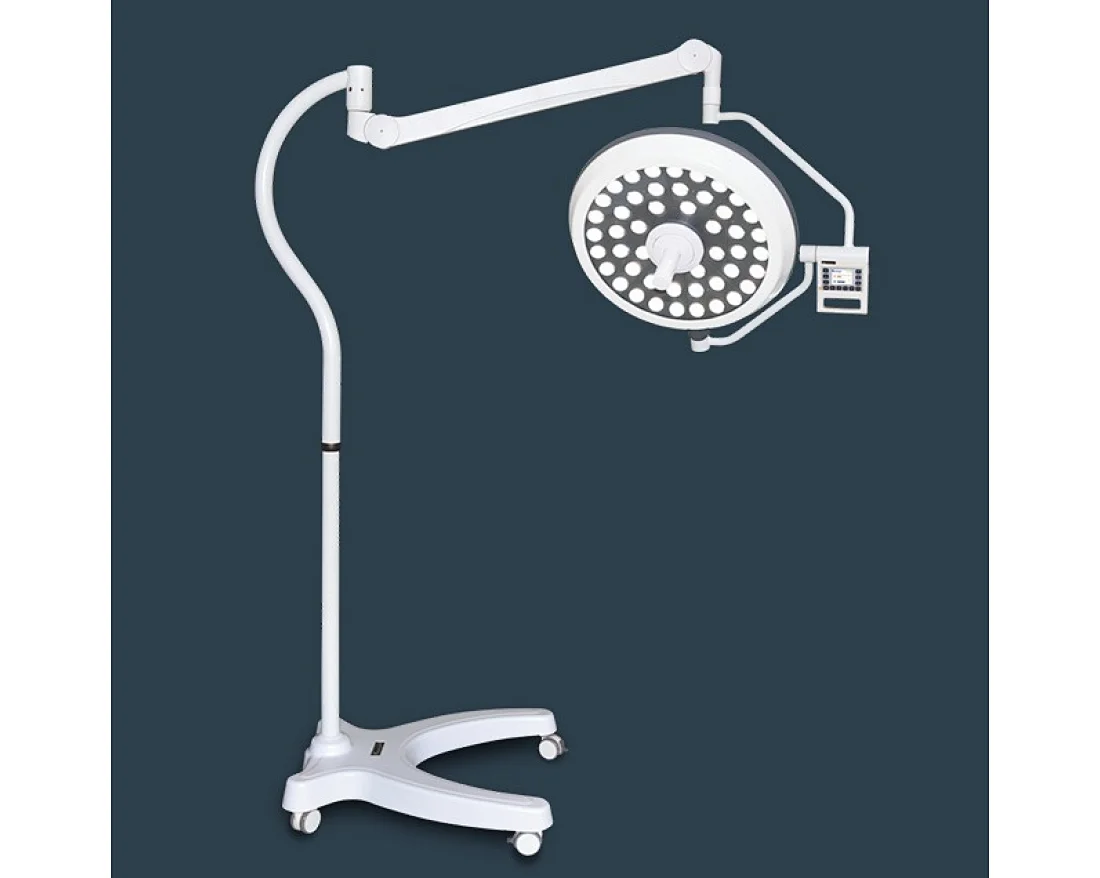

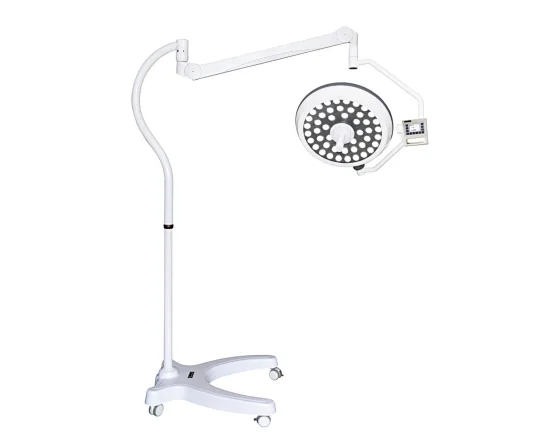

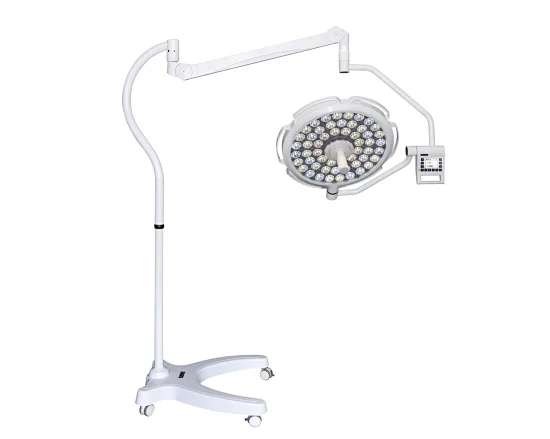

ZW-500D (L) LED Surgical Light
Simple and clear system operation interface, simple and easy to understand
High efficient and durable OSRAM LED light source without thermal radiation
Flexible design with PWM stepless dimming and adjustable color temperature
Switch lighting mode with one click: standard mode, endoscope mode, low light mode
Use PWMA optical lens, overall aluminum substrate heat dissipation, with a unique light concentrating technology, high light efficiency and low power consumption
High efficient and durable OSRAM LED light source without thermal radiation
Flexible design with PWM stepless dimming and adjustable color temperature
Switch lighting mode with one click: standard mode, endoscope mode, low light mode
Use PWMA optical lens, overall aluminum substrate heat dissipation, with a unique light concentrating technology, high light efficiency and low power consumption
ZW-500D (L)
1
Quantity:
ZW-500D (L) LED Surgical Light
- Simple and clear system operation interface, simple and easy to understand
- High efficient and durable OSRAM LED light source without thermal radiation
- Flexible design with PWM stepless dimming and adjustable color temperature
- Switch lighting mode with one click: standard mode, endoscope mode, low light mode
- Use PWMA optical lens, overall aluminum substrate heat dissipation, with a unique light concentrating technology, high light efficiency and low power consumptionSimple and clear system operation

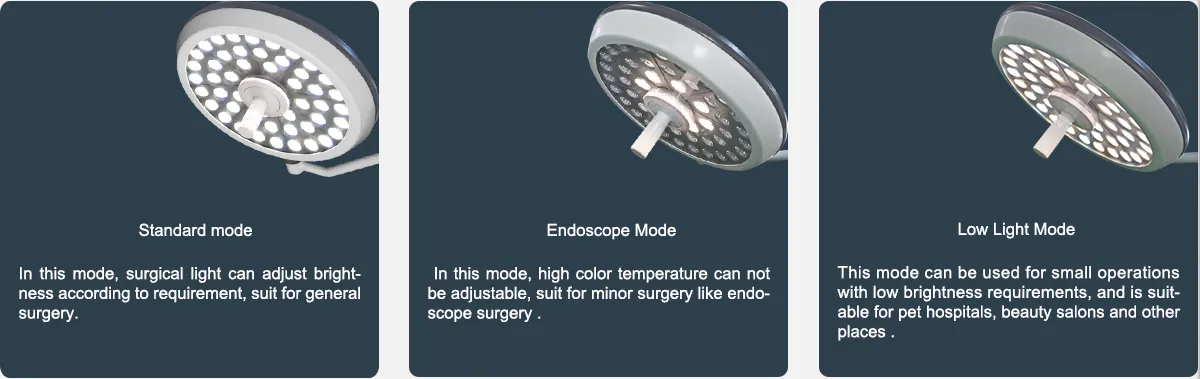

Three lighting modes
- Three Lighting Mode suit for various operation with different lighting requirement

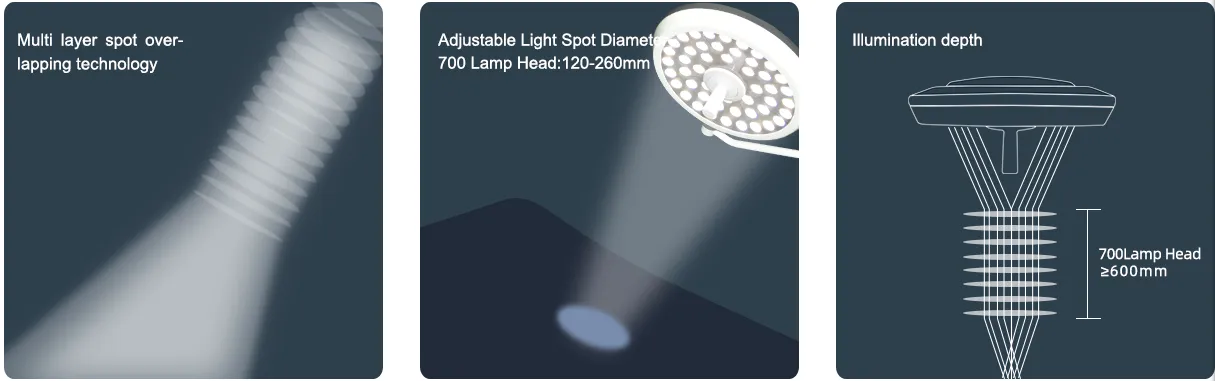

Uniform Adjustable Light Spot
- Multi layer spot overlapping technology, central focusing device, clear operation field

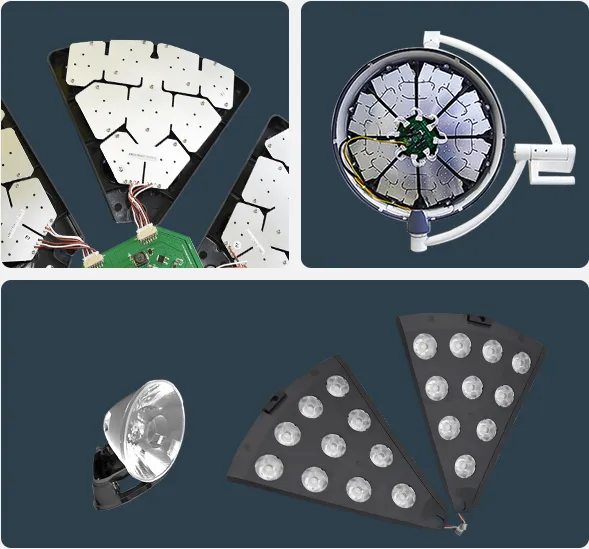

Excellent light source module design
- Lamphead with 80pcs LED light source, which are divided into multiple light source groups
- Excellent lighting collecting technology (lens focusing agnle is reasonable), Excellent light efficiency
- Each group light source is controlled by CPU independently, if any group light source is broken, the light can still use
- Internal Light Source Structure: Engineering Plastic ABS + Aluminum Board, good heat dissipation and lighter weight

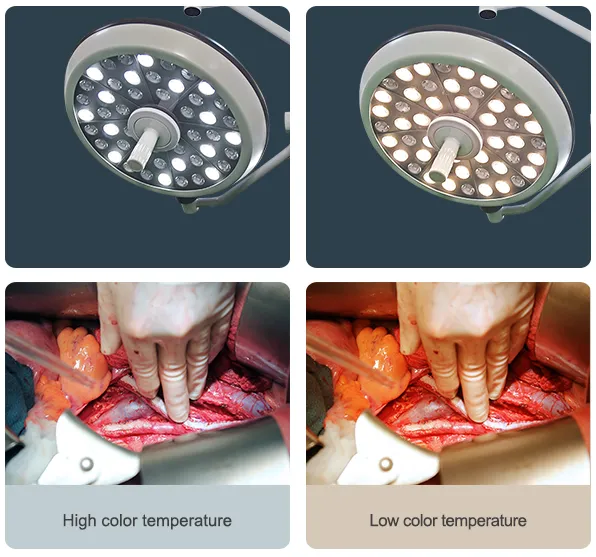

Color Temperature and Brightness Easy Adjustment
- Color rendering index ≥ 85, near to real color as soon as possible
- Stepless PWM dimming to satisfy brightness requirement for different surgery
- Reasonable quantity and distribution design of high low color temperature light source, which achieve 4000-5000K color temperature adjustment
Easy Practical Operation
- Soft Light with Eye Protection

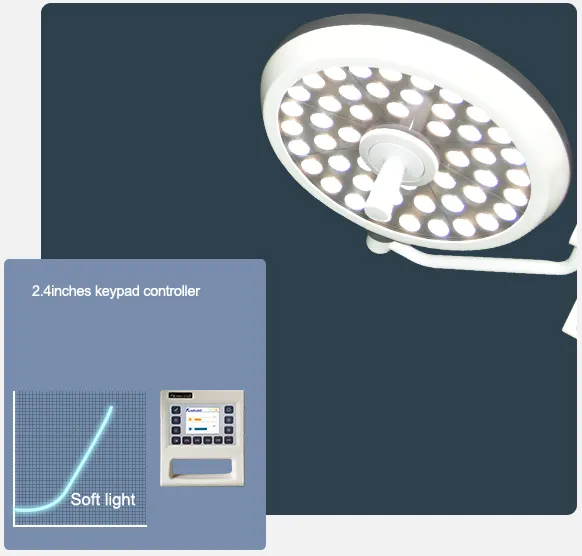

- Controllers for your optional

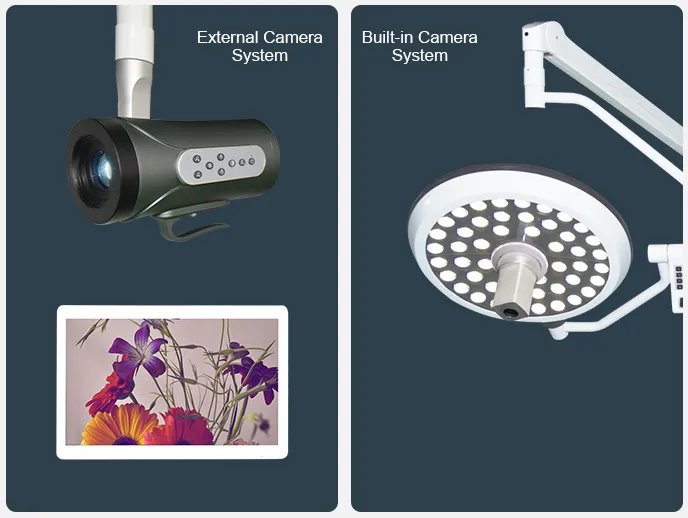

Optional HD Camera System
- Surgical Light can be equipped with built in camera or external camera system
- PWM technology, perfectly solving stroboscopic problem of the camera system
- Remote consultation, remote teaching, large-screen conference, etc. can be realized via the Internet and operating process can be recorded at the same time

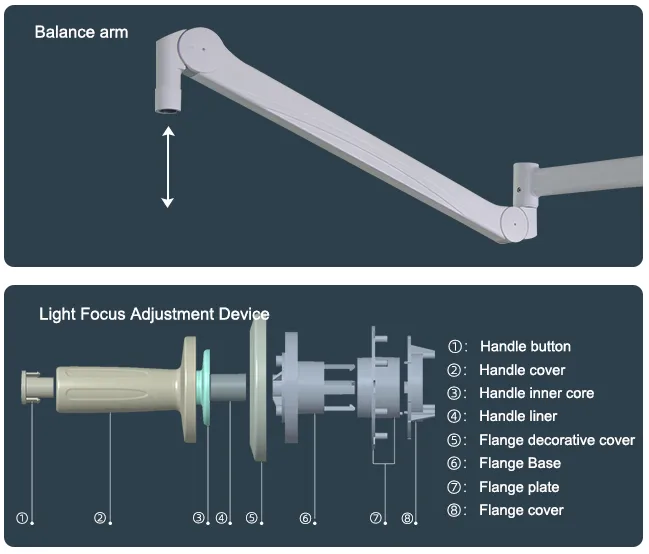

Stable Structure, Easy Install and Usage
- Adjusted with removable sterilizer handle with bear 134℃
- Balance arm of surgical light with square arm, lamp head can be pulled down vertically, and easy to rotate and adjust

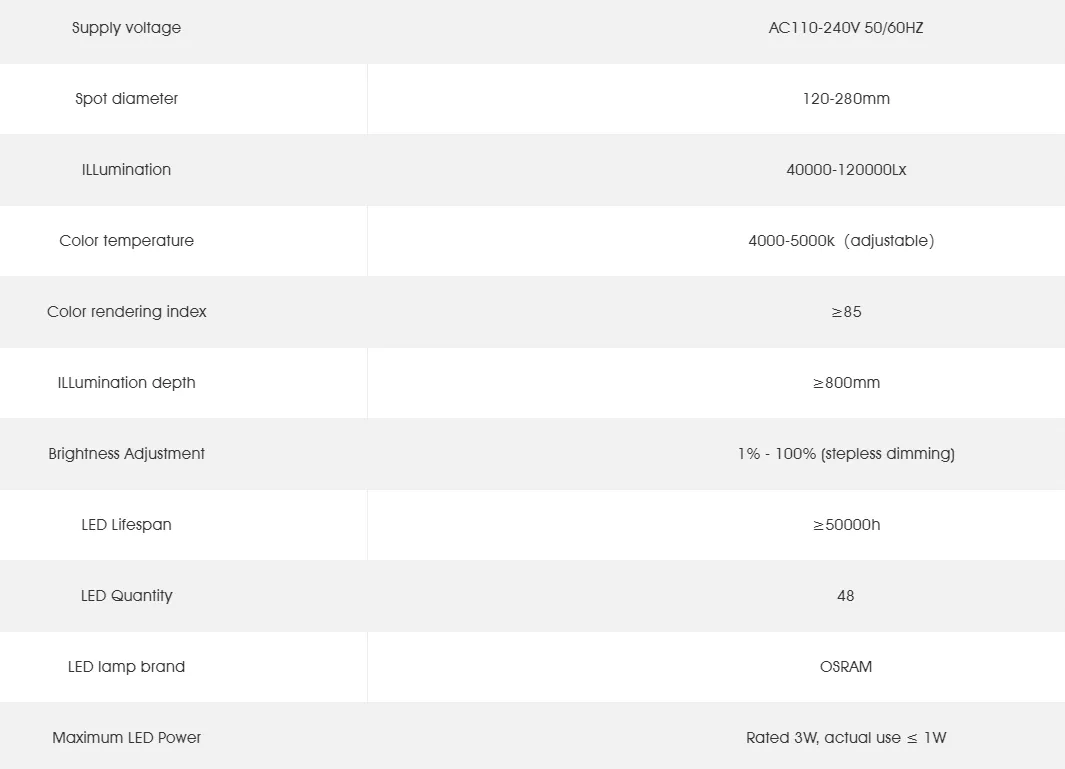

Product parameters
