PT50C Veterinary Color Doppler Ultrasound Scanner
PT50C Veterinary Color Doppler Ultrasound Scanner
PT50C Veterinary Color Doppler Ultrasound Scanner

PT50C Veterinary Color Doppler Ultrasound Scanner

Categories: Vet Ultrasound
Model NO.: PT50C

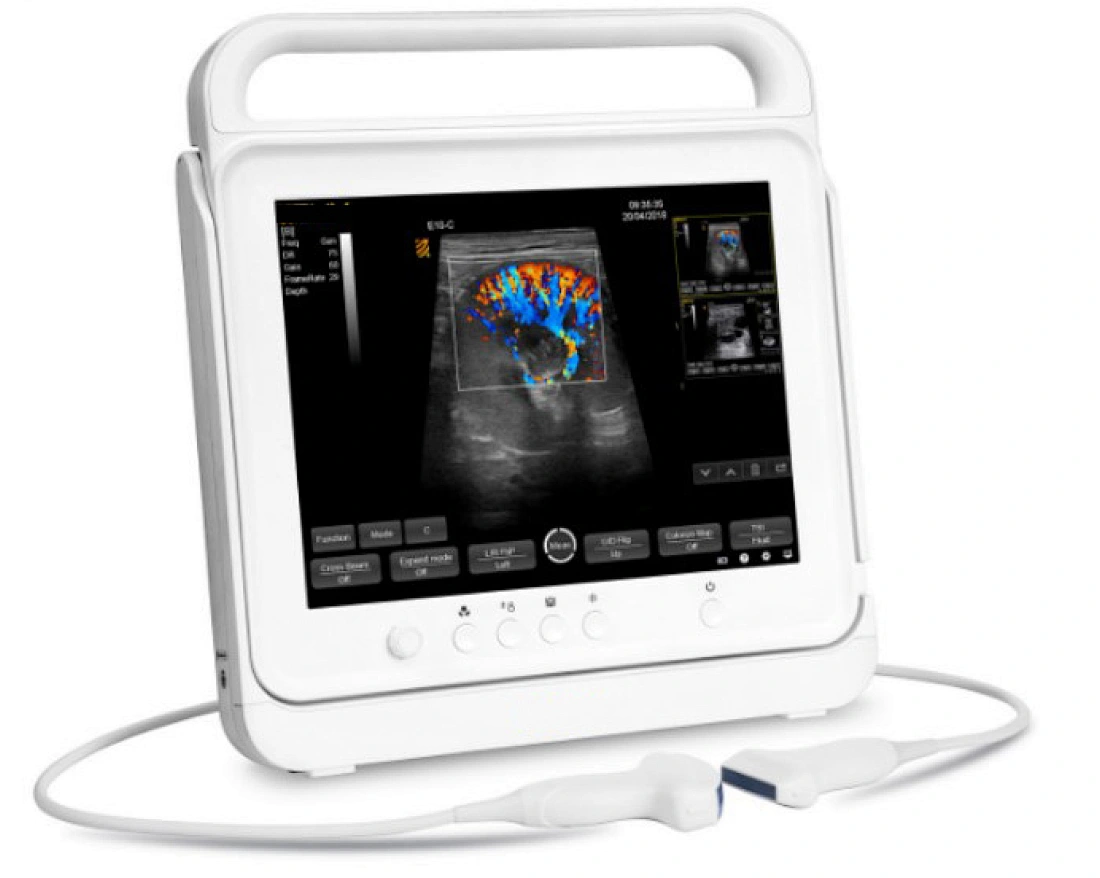

PT50C Veterinary Color Doppler Ultrasound Scanner


PT50C Vet ultrsound scanner is the most lightweight hand-carried portable ultrasound with three probe ports in the world, deliver superb image quality in many Veterinary clinic & research departments, livestock farm or practice settings across multiple examinations.


High-Resolution Touchscreen


PT50C is a high-resolution, 15"touchscreen veterinary ultrasound designed to provide a robust, high-quality ultrasound image. All patient files, reports, annotations, and specific measurements are all adapted for veterinarians.


Features:

  • Specialized veterinary transducer and veterinary software
  • Advanced imaging technology and superior image quality can provide fast and precise scans
  • Applicable to scans of Equine, Bovine, Ovine, Swine, Feline, Canine, etc.
  • Applicable to different diagnosis of Abdomen, Obstetrics, Cardiology, small parts, vascular, tendon, etc
  • 15 inch high resolution, wide-angle color LED with 45 degree tilt functionality
  • Three transducer port is designed to meet the different clinical applications
  • Replaceable long life battery
  • iBscan™ Quick Image Optimization
  • Annotation library for quick comment
  • iBstation™Patient information management system
  • USB image transfer and software upgrade
  • Image clipboard for thumbnail view
  • The supported DICOM 3.0 can communicate with PACS system of the hospital seamlessly
  • Special-designed probe holder, no need for extra assistance
  • Modular software, easy for upgrade, free lifetime upgrade to new versions
  • Support rectal probe introducer eases your shoulder and arm strain for Fetal Aging, Pregnancy Testing

Patient ID/Owner Name

The patient screen is dedicated to the veterinary environment with fields for the animal’s name, species, and breed.

Measurements and Reports

Confirming BMV’s dedication to the veterinary world, complete veterinary measurement packages, including
abdominal, cardio-vascular, and reproductive gestational calculations provide easy examination documentation.

Wireless and DICOM Connectivity

The system is designed for limitless wireless connectivity and can be easily implemented in any Windows or DICOM environment. Access to wireless connectivity, easy networking, printing, and communication with external PCs are just one click away.


Accessories:



Micro-Convex: Abdominal probe for reproduction and MSK. Can be used on horses, dogs, cats

Linear: External probe used for examining tendons, MSK and orthopedics. For use on horses, dogs, cats

Convex: Abdominal probe used for reproduction, 30 cm depth. Can be used for horses, swine and small ruminants

OPU Probe: Ovum pick up probe. For use on cows and mares

Linear Rectal: Linear rectal probe that can be used on cows and horses

Swine Carcass: Probe Used for back fat, loin eye, IMF and muscle depth in swine

Beef Carcass: Probe Used for back fat, loin eye, IMF and muscle depth on beef cattle

Carrying Cases: Cases Used for mobile moving

Standoff Swine & Bovine: For enhancing scanning with the Carcass transducer immediately beneath the body surface

Trolley: Completely adjustable, with large wheels, for smooth and safe transportation.

Travel case: A dedicated customized travel case either for roll along or as a rucksack.

Technical Specification:

Ultrasound platformBased on linux, stable performance, security data
Imaging modesB,B&M,2B,4B,B+Color,B+Power,PW
Gray scale levels256
Transducer typeConvex Array,Linear Array,Endocavity Array
Transducer frequency2-12Mhz
Transducer element128
Transducer connector3 active transducer connectors
Scanning depthUp to 351mm
Language

Software: English, Chinese, Spanish, Russian, Italian , Czech , and more(ODM support!) Keyboard Input: English, Chinese, and more(ODM support!)
User Manual: English, Chinese

Dimension402x385x53mm
Weight4.5kgs
Monitor15 inch with 45 degrees adjustable
Input and output
  • HDMI:                       1
    USB 3.0:                   1
    WIFI:                         1
    MIC:                          1
    DC in:                        1
    S-Video:                    1
    DICOM3.0:(optional) 1
Standard Configurations
  • PT50C Vet Systems
  • 15"high definition LED monitor
  • Touchscreen
  • C8‐5Cc Micro convex probe
  • WIFI module
  • Two USB ports
  • One s‐video out port
  • One HDMI port
  • One power inlet
  • Three transducer connectors
  • Two special‐designed probe holder
  • Plenty of veterinary measurement&calculation software packages Lithium Battery Supporting normal diagnosis
  • User defined exam settings
  • 12 months warranty since ex‐factory date for main unit12 months warranty since ex‐factory date for probes
Options:
  • Convex array transducer
  • Linear array transducer
  • Rectal Linear transducer
  • High frequency linear probe
  • Micro convex probe
  • AC Adapter
  • Mobile trolley
  • Wheeled transport case
  • DICOM 3.0
