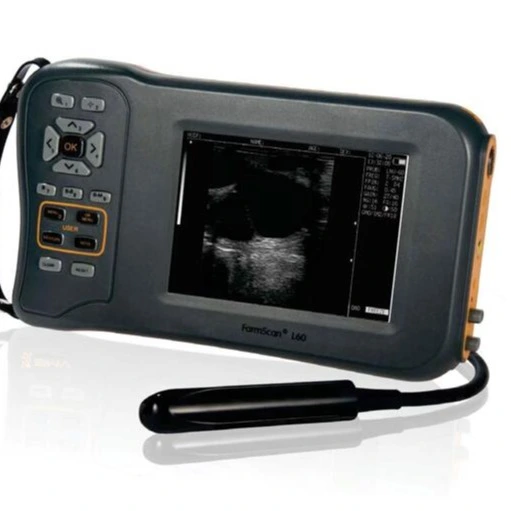

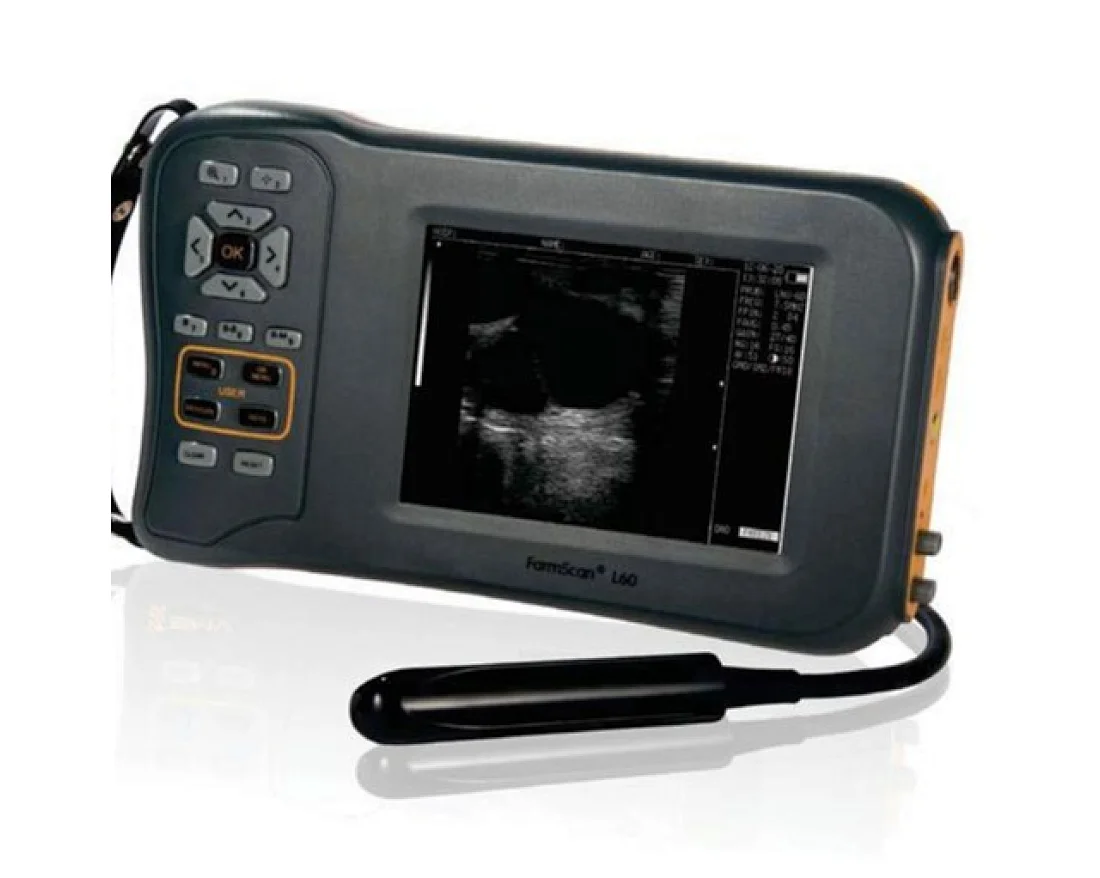

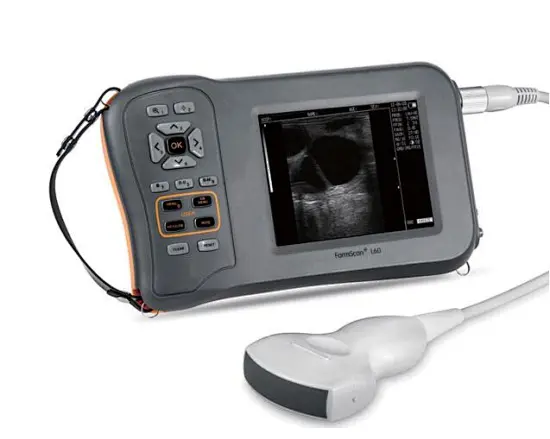

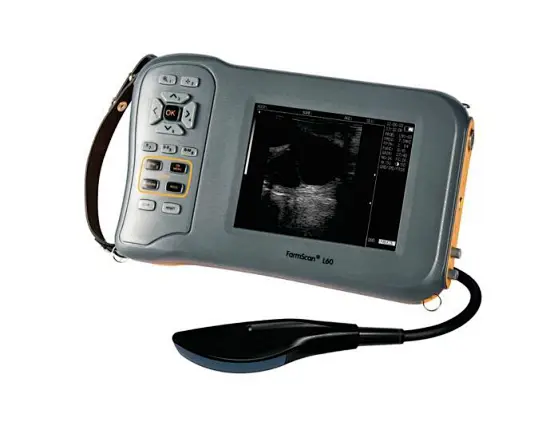

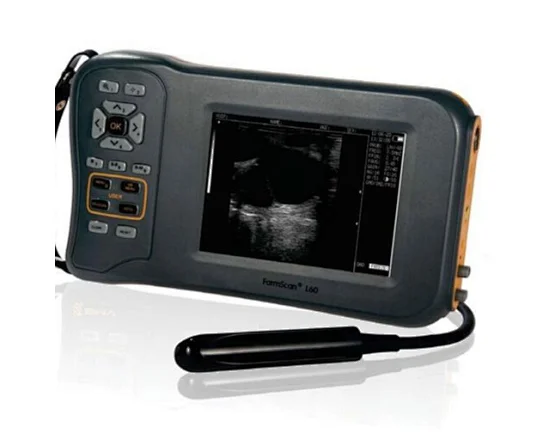

L60 Compact Handheld Veterinary Ultrasound
Features:
Fast and reliable pregnancy from
- 28th day on cows
- 13th on mares
- 25th on sheep or goat
Maximum comfort while you work
- Lightweight, only 0.6kg;
- 5.8-inch WVGA LCD and excellent imaging quality and ergonomic design;
- Versatile and easy use for all veterinary applications on bovine, equine, swine, etc;
- Li-ion battery with 3 operating hours;
- Images and videos export via USB 2.0 with 450 frame cine loop inside;
- Software & Report for reproductive system, and measurement for distance, area, circumference, volume, angel, heart rate, etc.
Patent design:
Rectal Convex Probe (wide field of view and deeper penetration) + Works with sizes of IFR™ Probe Introducer;
Rectal Linear Probe + Works with sizes of IFR™ Probe Introducer;
FarmScan® L60 Rectal Linear and FarmScan® L60 Rectal Curve are preferred for use in large animals and for echocardiography of horses. Provides Doppler function- heart rate. Excellent choice for Vet echocardiography.
FarmScan® L60 Convex probe is a high-end system for pig-sheep-goat farms that have interesting in the nice image quality and stable quality.
FarmScan® L70, perfect for Pregnancy checking, Backfat checking, Eye muscles.The role of back fat detection:
Swine: back fat, muscle measurements, marbling Bovine: reproduction, back-fat
Sheep: back fat, Loin Muscle Area Scanning
Standoff for measurement of perimeter and area of loin This standoff is necessary for full display of loin eye in a transverse exploration, to perform the perimeter and area measurement.
- If the swine is too fat, less reproductive performance, waste feed, increase farm costs;
- Too less back fat will drop the utilization years;
- sow too fat, more heat intolerance, heart, lung, limb hoof overburdened, hormone imbalances, easy to have a series of problems;
- If the swine is too thin, it used too much body storage, bad for multiplication;
- Pregnant pig too fat, also easily lead to stillbirth, or even sow death;
- Keep a good balance of the back fat will keep the swine performance remained at a high level.
Various Transducer:
| 3.5MHz Convex array transducer |  | Frequency Bandwidth: 2.0/3.5/5.0MHz | PIG‐SHEEP‐GOAT ANIMAL Applications: Pregnancy diagnosis, Pregnancy control, Counting |
| 7.5Mhz Linear array transducer |  | Frequency Bandwidth: 5.5/7.5/9.0MHz | EQUINE/LARGE ANIMAL Applications: Obstetrics, Chest/lung exam, Transrectal Examination of Sacroiliac Joints & Lumbo Sacral nerve roots |
| 6.5Mhz Micro‐convex array transducer |  | Frequency Bandwidth: 5.0/6.0/7.5/8.0MHz | SMALL ANIMAL Applications: Pregnancy control & reproduction diagnosis, Abdominal exams |
| 3.5Mhz rectal curve array transducer |  | Frequency Bandwidth: 2.0/3.5/5.0MHz | PIG‐SHEEP‐GOAT ANIMAL Applications: Pregnancy diagnosis, Pregnancy control, Counting LARGE ANIMAL Applications: Pregnancy diagnosis, Reproduction, Sexing, Abdominal |
| 6.5Mhz Rectal linear array transducer |  | Frequency Bandwidth: 5.0/6.5/7.0/8.5MHz | EQUINE/LARGE ANIMAL Applications: Large Animals Reproductive, Equine Tendon |
Clinical Images:
