6 Channel Veterinary ECG Machine
6 Channel Veterinary ECG Machine
6 Channel Veterinary ECG Machine

6 Channel Veterinary ECG Machine

Categories: Vet ECG Machine
Model NO.: UVECG-3306G

Product Features:
  • Portable, delicate design, with big color touch screen to display and operate.
  • 7 leads synchronously acquisition and display, with automatic interpretation function.
  • High accuracy digital filter, auto baseline adjustment.
  • 112mm, six channel recording, recording format: 3ch+, 3ch+++, 6ch
  • Working modes: Manual / Auto / R-R / Store.
  • 800×480 graphic, 7 inch color touch LCD to display detailed ECG information.
  • 250 cases storage and replay ( SD card is optional ).
  • Built-in rechargeable Li-ion battery supports continuously working for about 9 hours.
  • USB / UART interfaces support USB storage, laser printer printing and PC ECG management software( optional ).
  • Measurement: 300mmx230mmx75mm, 2.8kgs.
Product Specification :
LeadStandard 7 leadsTime constant≥3.2s
Lead acquisitionsynchronously 7 leads acquisitionFrequency response0.05160Hz(-3db)
Work modeMan / Auto / R-R / StoreNoise level15μVp-p
FilterAC Filter: 50Hz / 60Hz
EMG Filter: 25Hz / 45Hz
Anti-Drift Filter: 0.15Hz ( adaptive )
Inter-channel interference≤0.5mm
CMRR≥120dB ( with AC filter )Sensitivity2.5, 5, 10, 20, 40, Auto ( mm/mV )
Input circuitFloating; Protection circuit against defibrillator effectRecording mode3ch+, 3ch+++, 6ch
Input impedance≥50MΩPaper speed6.25, 12.5, 25, 50mm/s ( ±3)

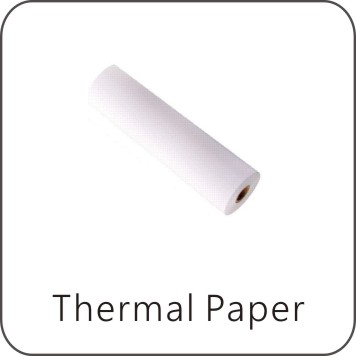

Input circuit current≤0.05μARecording paper 112mm x 27m high resolution thermal
roll paper
Patient current leakage10μACommunication portUSB, UART
Calibrating voltage1mV±2Power supplyAC 110-230V(±10%), 50/60Hz (±1Hz)
DC Rechargeable Li-ion battery,
14.4V, 2200mAh
Voltage tolerance≥±500mVDimension/Weight300mmx230mmx75mm, 2.8kgs.

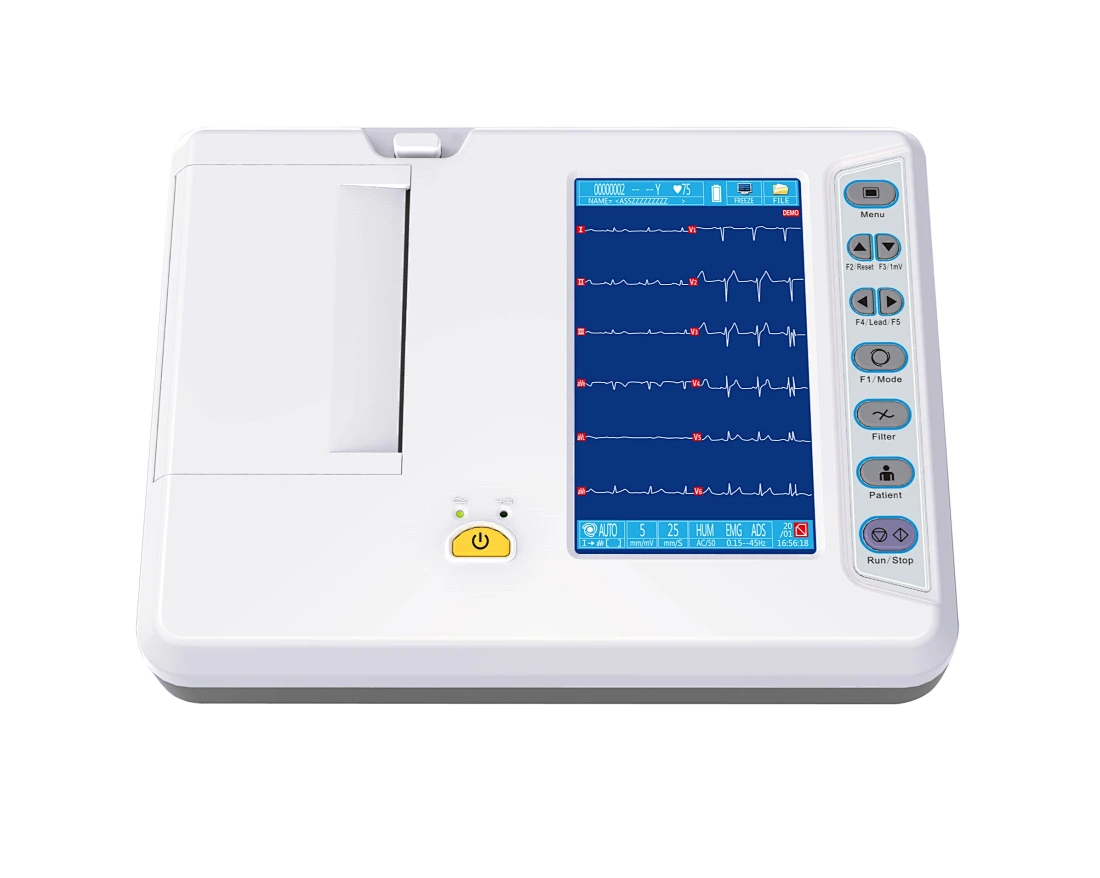

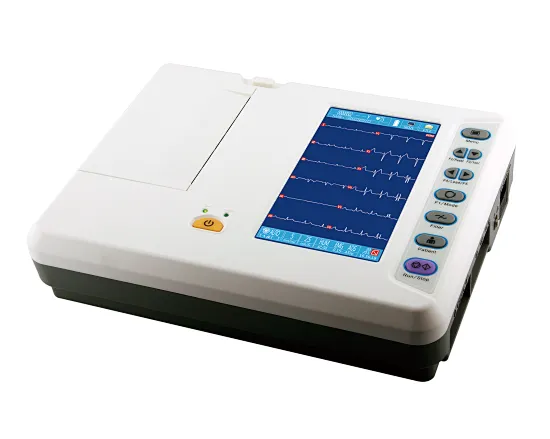

Product Picture:
